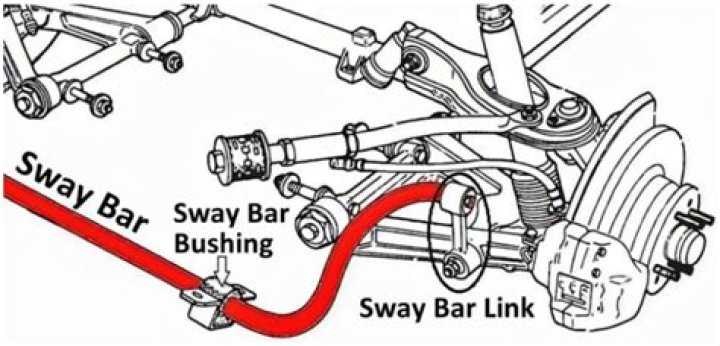

Sway bar end links are the attachment points between a sway bar and suspension members. Also known as a stabilizer bar or anti-roll bar, the sway bar connects suspension components on either side of the car to minimize body leaning in turns.

Do I need end links for sway bar?

Without a sway bar, as the car starts to “roll”, one side of the suspension would compress and the other side would just “hang”. … In order for this to happen after you just lowered your car, you need a shorter sway bar end link because now the suspension geometry including suspension lengths have changed.

How much does it cost to replace sway bar links?

The average sway bar link replacement cost is usually between $125 to $160 including labor. The links themselves cost between $40 to $110 each, while the labor will set you back anywhere between $50 to $70.

Can you drive with a broken sway bar link?

If a front sway bar is broken, you’ll experience significant differences in how the car handles. It may feel “looser,” particularly when driving at high speeds. You could lose control of the car, resulting in a serious accident if you’re not prepared.

Is a sway bar link the same as a stabilizer link?

The stabilizer and sway bars go by different names. You might know them by stabilizer link, anti-roll, and anti-sway bars. No matter what you know them by, they are basically the same thing.

What is the purpose of a sway bar on a car?

A sway bar is part of your vehicle’s suspension, which includes your wheels / tires, springs, shocks, steering system, linkages, bushings, and joints. Sway bars help your ride handle turns and prevent body lean, the last thing you want while operating a motor coach or RV!

What happens if you shorten sway bar links?

Shorter end links just bring the bar up. May be good; may not. Shorter end links will not make the bar “stiffer”.

What noise does a bad sway bar make?

Signs and Symptoms of a Bad Sway Bar Link They can be found at the end of the sway bar and help support a stable ride and limit body roll. If the sway bar link breaks and loosens, it can make a rattling or clunking sound as it taps other parts of the suspension.

What happens when a sway bar goes bad?

A broken or damaged sway bar link can cause your vehicle to handle poorly, particularly if the sway bar link is broken. If it is broken, then the sway bar is not connected to the chassis properly and will not prevent the car from leaning in a corner. Your car will lean more in corners if the link is broken.

How often should you replace sway bar links?

Now, when it comes to the overall lifespan of the sway bar link, it will be from four to five years. However, if the roads have treated the car exceptionally well and the turns were not that sharp, you can expect them to last over five years.

Article first time published on

Can a broken sway bar cause vibration?

No, sway bar cannot cause vibrations. It can transmit them, but not cause them.

Are sway bar links hard to replace?

Replacing the sway bar links is a repair process that can be done with a few basic tools. If you don’t have access to the correct tools or are short on time, ask a certified mechanic from YourMechanic to replace the sway bar links for you.

What is the difference between a sway bar and an anti sway bar?

Sway bars are no longer used because they were not so efficient in preventing the rolling of the vehicle. The anti roll bars perform more efficiently than sway bars. Thus, increasing the stability of the vehicle and by controlling the understeer and oversteer characteristics of the vehicle.

Are adjustable end links worth it?

Adjustable sway links are really only useful for left-right pre-load to balance the car for more predictable race use. They are pretty pointless for casual street use. The arm angle argument makes sense and I agree with it, but it wouldn’t be noticeable with street use setups like 98% of us have/want.

How do you know if your sway bar is bad?

  • Clunking noise.
  • Rattling noise.
  • Knocking sound on uneven road.
  • Lack of stability when driving.
  • Noise going over speed bumps.
  • Poor handling when turning.

Are end links necessary?

Whenever you change a vehicle’s ride height, the suspension geometry changes and in order to correct the angles that are changed, shortened or adjustable end links may be needed. The end link below is adjustable which can be shortened or lengthened in order to correct the sway bar angle.

Do sway bars affect ride quality?

These bars act as a third spring, controlling rolls and stiffness of a vehicle. A sway bar has no effect if both sides simultaneously move in the same direction. … If you increased the spring rate, it would reduce body roll but would impact ride comfort.

Are sway bars worth it?

If you notice squeaking or knocking sounds during cornering, the bushings, and links likely need to be replaced. But, if you want to improve your car’s handling, stiffer sway bars do have tangible benefits. They reduce body roll and lean, making your car feel more agile and stable.

What is death wobble?

Death wobble is used to describe a series of sudden, often violent front suspension vibrations exhibited by solid front axle suspensions, and more infrequently, independent front suspensions. … Even just one death wobble incident can cause permanent—and dangerous—suspension or steering damage.

Do you need a front sway bar?

Sway bars are an essential piece of suspension equipment on your truck or Jeep that controls and prevents excessive sway that can lead to a rollover. How much sway control you need depends on your off-road truck or Jeep and what you do with it.
