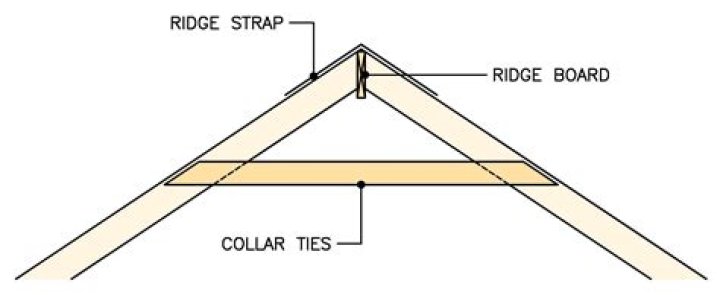

A collar tie is a tension tie in the upper third of opposing gable rafters that is intended to resist rafter separation from the ridge beam during periods of unbalanced loads, such as that caused by wind uplift, or unbalanced roof loads from snow.
Does my roof need collar ties?
Collar ties are necessary to prevent separation of the roof at the ridge due to wind uplift. … Rafter ties are required by code, unless the house is designed so that the walls or a structural ridge beam carries the full load of the roof.
What is the purpose of collar ties?
A collar tie is a tension tie in the upper third of opposing gable rafters that is intended to resist rafter separation from the ridge beam during periods of unbalanced loads, such as that caused by wind uplift, or unbalanced roof loads from snow.
Where do you put collar ties?
Collar ties attach between every other pair of opposing rafters at the upper third of the roof below the ridge or peak of a roof section.Does a shed roof need collar ties?
A shed roof is similar; as long as it’s properly attached at the top, the bottom can’t move. “Collar ties” are an exercise in futility. Use them as ceiling joists if needed; otherwise, leave them out.
Does a hip roof need collar ties?
A hipped roof can be designed without rafter ties or internal columns by using the wall plates as tension members and the roof deck for stability. Without roof deck, the four hip members together with a four foot long ridge beam form an unstable structure when hinged at all six nodes.
Can collar ties be removed?
Also, in high wind situations with lower pitched roofs, collar ties may help hold the ridge assembly together, although steel strap ties installed just below the ridge board would probably work better. My call is that in the vast majority of such cases, collar ties can be removed with no detrimental effect.
How many nails are in a collar tie?
The IRC one-size-fits-all requirement for collar ties and ridge straps is three 10d nails at each end of the collar tie or strap, as provided in Table R602.Can collar ties replace ceiling joists?
Collar ties, which are designed primarily to resist wind uplift, are required in the upper third of the attic space. Unlike ceiling joists, collar ties can be made of less-substantial material (1×4 minimum) and can be spaced up to 4 feet apart. Ridge straps can be used in lieu of collar ties to resist uplift.
What is code for collar ties?Where Should Collar Ties be Placed? When it comes to collar tie placement, the code specifies that collar ties are to be located in the upper one-third area of the attic space up near the ridge and shall not be spaced more than 4 feet on center.
Article first time published onWhat can I use instead of collar ties?
Cables. Steel cables are often substituted for lumber collar ties. The cables typically connect to framing materials via specialized hooks, brackets or turnbuckles. Depending on your project’s design, the cables can span between the bottoms of rafters, like ceiling joists, or near the roof’s peak, like collar beams.
How often do you need Rafter ties?
Rafter ties amount to an additional framing member that runs above the ceiling joists and that connects opposing rafters. They are generally required every 4 ft., which means that you need a rafter tie only for every other pair of 24-in.
Do I need blocking between rafters?
Things You’ll Need Rafter blocking is an essential part of the roof framing process in that the blocks provide a stop for ceiling insulation and a continuous surface for the roof sheathing to be edge nailed to. Each block is 2×4 or 2×6 depending on the size of the rafters, and is secured to the top plate.
What is a Perling?
A purlin (or historically purline, purloyne, purling, perling) is a longitudinal, horizontal, structural member in a roof. In traditional timber framing there are three basic types of purlin: purlin plate, principal purlin, and common purlin.
Are ceiling joists load bearing?
Walls that run perpendicular (at a 90 degree angle) to the ceiling joists are load-bearing. Walls that run parallel (in the same direction) as the ceiling joints are non load-bearing. Ceiling joists are spliced over the wall.
Is a ridge board structural?
A ridge board is a non-structural member that serves as a prop for opposing rafters to rest against and connect to. Ridge boards can only be used in roofs with slopes from 3 in 12 up to 12 in 12.
Is a hip roof self supporting?
A hip roof is self-bracing, requiring less diagonal bracing than a gable roof. Hip roofs are thus much more resistant to wind damage than gable roofs. Hip roofs have no large, flat, or slab-sided ends to catch wind and are inherently much more stable than gable roofs.
Does a hip roof need bracing?
The connections between the hip rafters and the bearing at the corners are critical. The International Residential Code (IRC) does not address the requirements for such a roof and instead requires that hip (and valley) rafters be supported at the ridge by a “brace to a bearing partition” (paragraph R802. 3).
Does hip roof need ceiling joists?
In many cases, hip roofs will need ceiling joists to help support the structure. However, there are cases when you can build one without using them. For example: square hip roofs typically won’t require ceiling joists. It’s always best to hire a roofing professional who will be able to tell for sure, though.
Is it hard to raise the ceiling in a house?
In an existing home, however, raising the ceiling in the living room, or anywhere else, is a complicated process. Yes, it’s doable, but if it involves changing the roof structure, a structural engineer is necessary.
How much weight can a ceiling joist hold?
If you have another floor above your garage, the ceiling\floor structure can usually support up to 40 lbs/SqFt (including the weight of the floor above it). If you do not have another floor above, the ceiling trusses may only be able to hang a maximum of 10 lbs/SqFt.
How do you raise the roof of a house?
You will need a building permit if you plan to raise ceiling height in your home, especially if you will also be modifying your roof-line. Contact the residential permit department in your area to find out more about requesting a permit. If you choose to hire a roof contractor, they will pull the permit for you.
How high can I put collar ties?
The rule of thumb I was taught is that the collar ties should be no higher than the upper third of the height between attic floor and ridge. Any higher and you take the chance that they won’t funtion to keep the outer walls from spreading. The rafters may bend and allow the walls to move, and the ridge may in turn sag.
What is the minimum size of roof collar ties?
Collar ties shall be not less than 1 inch by 4 inches (25 mm by 102 mm) (nominal), spaced not more than 4 feet (1219 mm) on center.
How do you stop roof spreading?
Use the Services of a Structural Engineer In some cases this can include installing additional beams and struts to strengthen the roof, or simply looking at the existing beam design and upgrading the connections between the existing timber members.
