Within the expansion tank is a pressurized air bladder which absorbs the additional water by expanding and contracting. As the water in your water heater becomes hot, it expands and increases the pressure within the tank and plumbing system. … An expansion tank only contains overflowing water.

Why is the water in my expansion tank hot?

Faulty coil in the hot water cylinder Over time, this coil can become perforated, meaning there’s hole in the coil which allows water for the central heating into the domestic hot water being stored in the cylinder. This rise in water levels can then lead to the feed and expansion tank overflowing.

How do I know if my water expansion tank is bad?

If it makes a dull thud rather than a hollow sound, your tank is full of water and needs repair or replacement. You can also gauge this by feeling the tank, which will be cool where it’s holding air and warm where it’s holding water. If more than half the tank is warm, you have a problem.

Should the water in the expansion tank be hot?

Expansion Tank Maintenance The top portion of the tank should feel warm to the touch, and the bottom portion of the tank should be room temperature. If the entire tank is warm, it is likely that the tank has completely filled with hot water, which occurs only if the diaphragm fails.

Can expansion tank explode?

In fact, the tank may explode! Thermal Expansion Can Cause Hot Water Heaters to Explode! A typical hot water heater in an “open” sys- tem has only a temperature and pressure (T&P) valve to prevent a rupture of the hot water heater (figure A). Open systems allow expanding hot water to push into the cold water line.

How do you check pressure in an expansion tank?

Once you completely open the valve, you can measure and note the pressure. You can also check your expansion tank’s pre-charge pressure by knocking on the side of the tank with your knuckles to determine if it’s full of air or water. Pre-charge pressure that’s too low may be indicated when the tank is full of water.

What makes an expansion tank go bad?

Not Enough Air in Diaphragm Tank The most common expansion tank problem in a diaphragm tank is losing small amounts of air through the valve. When this occurs, more air needs to be added to the tank. Adding air is a straight forward task. Use an air compressor or bike tire pump.

How do you know if you need a new expansion tank?

If your home has a “closed” plumbing system, then yes, you’ll need an expansion tank. You see, homes have either an open or a closed plumbing system. A closed plumbing system prevents water from flowing in the reverse direction (i.e., water won’t flow back into city lines once it enters your home’s pipes).

How much water should be in an expansion tank?

Water Heater CapacitySupply Pressure (psi)Expansion Tank Size40 to 60-gallon40-50 psi2-gallon40 to 60-gallon60-80 psi3.2-gallon80-gallon40 psi2-gallon80-gallon50-60 psi3.2-gallon

Why do expansion tanks explode?

Water Expands When It’s Heated in Your Water Heater As water heats up, it can expand dramatically, and if it’s hot enough to turn into steam, this can add even more pressure to the water heater. If the relief valve is malfunctioning, this can lead to an explosion.

Article first time published on

How much air pressure should be in a hot water expansion tank?

The recommended water pressure is between 50 and 60 PSI. Thermal Expansion Tanks contain an air bladder which is pressurized with air, and expands and contracts to absorb the expanded water from the water heater. needed. Check the air pressure in the Expansion Tank using a tire gauge.

How do you bleed an expansion tank?

  1. Turn off the valve that auto-fills the system from your cold water line.
  2. If you have one, open a valve or bleeder on the top of your expansion tank. …
  3. Open a drain valve and drain a suitable amount of water.
  4. Close drain valve and re-open valve you closed in step 1.

Can expansion tank be installed on hot side?

Although expansion tanks can be installed on the hot side, we strongly recommend they be installed on the cold line, downstream of the shutoff valve.

Do expansion tanks stop water hammer?

An expansion tank contains a rubber bladder and compressed air that absorb the energy wave as water flows through a pipe. As this device cushions the shock wave, it prevents water hammer.

Do water expansion tanks go bad?

Like most appliances in your home – expansion tanks do have a lifespan so at some point – they will need to be replaced. The average lifespan of an expansion tank is between 5 to 10 years.

Can expansion tank cause low water pressure?

Before installing an expansion tank, measure the tank’s air pressure charge. When taken from the box, the air pressure in the expansion tanks will likely be lower than your home’s water pressure.

Do you need to bleed an expansion tank?

The expansion tank is a pressurized tank that the heated water flows into to relieve the pressure in the hot water system; as the water cools, the pressure returns it to the system. As part of your routine maintenance, you’ll need to drain the tank once or twice a year.

What is the difference between an expansion tank and a pressure tank?

The most significant difference between expansion and pressure tanks is their functionality. An expansion tank handles water expansion and provides protection for water valves and heaters. On the other side, the pressure tank lengthens the lifespan of the pump.

What is expansion tank fill pressure?

Most expansion tanks come pressurized to 12 – 40 psi, but before you install the tank you have to match the system pressure. Start by removing the protective cover from the air valve on the tank. Use a tire gauge to check the pressure.

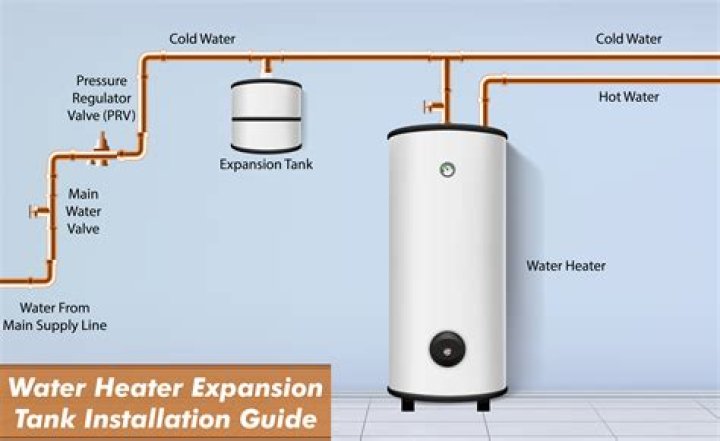

Where does expansion tank go on water heater?

An expansion tank is generally installed directly above the water heater by means of a tee-fitting installed in the cold water delivery pipe. The expansion tank is usually installed vertically, though it is acceptable to install it horizontally if it is necessary because of space limitations.
