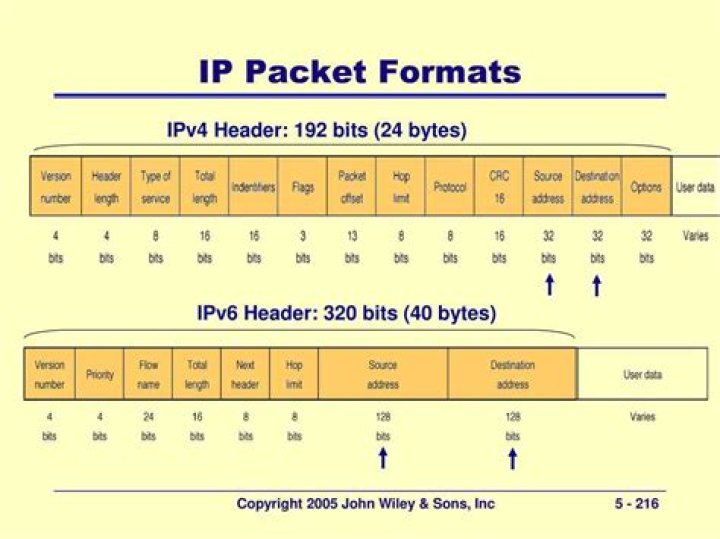

Each IP packet contains both a header (20 or 24 bytes long) and data (variable length). The header includes the IP addresses of the source and destination, plus other fields that help to route the packet. The data is the actual content, such as a string of letters or part of a webpage. A diagram of an IP packet.
What is IP packet format?
Each IP packet contains both a header (20 or 24 bytes long) and data (variable length). The header includes the IP addresses of the source and destination, plus other fields that help to route the packet. The data is the actual content, such as a string of letters or part of a webpage. A diagram of an IP packet.
What is an example of a packet?
What is a packet? It turns out that everything you do on the Internet involves packets. For example, every Web page that you receive comes as a series of packets, and every e-mail you send leaves as a series of packets. Networks that ship data around in small packets are called packet switched networks.
What is the difference between an IP address and an IP packet?
What is the difference between an IP address and an IP Packet? An IP address is a sequence of numbers used to identify a device on an IP network. An IP packet contains an IP address AND the data intended for the machine identified by the IP address.What is the structure of a packet?
The exact structure of a packet varies between protocols. … A typical packet includes two sections, a header and payload. The header store information about the packet while the payload section of a packet contains the actual data being transferred.
What does an IP header look like?
From a packet filtering point of view, the IP header contains four interesting pieces of information: The IP source address – four bytes long, and typically written as something like 172.16. 244.34. The IP destination address – just like the IP source address.
What are the 3 parts of a packet?
A network packet is divided into three parts; the header, payload, and trailer, each containing values that are characteristic of it.
Which IP packet must contain?
Que.Each IP packet must containb.Only Destination addressc.Source and Destination addressd.Source or Destination addressAnswer:Source and Destination addressHow are IP packets routed on the Internet?
IP Routing is an umbrella term for the set of protocols that determine the path that data follows in order to travel across multiple networks from its source to its destination. Data is routed from its source to its destination through a series of routers, and across multiple networks.
What is raw IP packet?The Raw IP interface lets a client program send and receive arbitrary IP packets on any IP protocol except TCP and UDP. Only one client can use any given protocol at one time. Only clients in the obey list can use the Raw IP interface. … Sends raw IP packets of a specified protocol.
Article first time published onHow MAC addresses are used in networks?
A MAC address is a unique serial number assigned to each network interface controller (NIC) . This allows a network to uniquely identify any device, even when a dynamic IP address is assigned using DHCP, each time the device connects to a network.
How do you calculate packet size?
You will need to calculate this size yourself. The IP header has a ‘Total Length’ field that gives you the length of the entire IP packet in bytes. If you subtract the number of 32-bit words that make up the header (given by the Header Length field in the IP header) you will know the size of the TCP packet.
What are the different types of packets?
You can choose from four basic Internet packet protocols: raw IP, ICMP, UDP (unreliable messaging), and TCP (streaming) all layered on top of the physical network (see Figure 3.1). This chapter describes each type and presents their advantages, disadvantages, and typical uses.
How are data packets formed?
First, your computer creates a packet, organized in a very specific way that the receiving computer can understand and use. This entire packet or “stream of data” is broken down to a specific number of “bytes” (eight bits of zeros or ones), which are individual packets that are part of the big data packet.
How do I find Wireshark packet number?
Simply select Edit → Find Packet… in the main menu. Wireshark will open a toolbar between the main toolbar and the packet list shown in Figure 6.11, “The “Find Packet” toolbar”.
What is network packet size?
A network packet is a small amount of data sent over Transmission Control Protocol/Internet Protocol (TCP/IP) networks. The packet size is around 1.5 kilobytes for Ethernet and 64 KB for IP payloads.
How many bytes are in a TCP packet?
The standard size of a TCP packet has a minimum size of 20 bytes, and a maximum of 60 bytes.
Can there be a packet without data?
1 Answer. There are the ACK packets that carry no data and only acknowledge received data. When using Wireshark it should display these “flags” on the empty packets.
What is IP packet header?
An IP header is header information at the beginning of an Internet Protocol (IP) packet. An IP packet is the smallest message entity exchanged via the Internet Protocol across an IP network. … The header contains information about IP version, source IP address, destination IP address, time-to-live, etc.
What is a packet header?
A packet header is the portion of an IP (Internet protocol) packet that precedes its body and contains addressing and other data that is required for it to reach its intended destination. … Regardless of their size, each packet consists of three main parts: a header, the body, also called the payload, and a trailer.
What is in a TCP IP packet?
Most networks use TCP/IP as the network protocol, or set of rules for communication between devices, and the rules of TCP/IP require information to be split into packets that contain both a segment of data to be transferred and the address where the data is to be sent. …
How do I enable IP routing?
- Open the Registry Editor.
- Navigate to “HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Services\Tcpip\Parameters.”
- Right-click “IP Enable Router” and click Modify.
- Change the “Value Data” field from “0” to “1.”
- Click Ok, close the Registry Editor, and restart your computer.
What is my router IP address?
If you have Wifi Analyzer installed on your Android smartphone, launch the app. You will see the channel graph tab immediately. Swipe to the Access Points tab and you will see the IP address of your router.
What is no IP routing?
No ip routing command disables the routing on router. and after I give an ip address to its interface and provide a default gateway then that router will work as a host connected to the network, right.
How many bits are there in the Ethernet address?
In a LAN, each node is assigned a physical address, also known as a MAC/Ethernet address. This address is unique to each of the nodes on the LAN and is 6 bytes (48 bits) long, which is burned on the Ethernet card (also known as the network interface card).
What is the minimum header size of an IP packet?
The minimum size is 20 bytes (header without data) and the maximum is 65,535 bytes. All hosts are required to be able to reassemble datagrams of size up to 576 bytes, but most modern hosts handle much larger packets.
Why does each IP packet contain a destination address?
Each IP packet contains a destination address. What is the primary purpose of the destination address? It helps the router know where to send the packet.
How many bytes are in the IP header how many bytes are in the payload of the IP datagram?
According to the figure 1, the header length is 20 bytes and the total length is 56 bytes. Therefore, the payload of the IP datagram should be 36 bytes (56 bytes – 20 bytes). 4. Has this IP datagram been fragmented?
Does 5G use TCP IP?
5G networks are expected to be all-IP networks, similar to their predecessors 4G mobile networks, but with higher bit rates in the access and core parts, and delays less than 1 ms in the mobile terrestrial network, that requires continuing work on the Internet networking protocol stack, which is consisted of IP on the …
What is a packet in Wireshark?
Note: A “packet” is a single message from any network protocol (i.e., TCP, DNS, etc.) Ed. Note 2: LAN traffic is in broadcast mode, meaning a single computer with Wireshark can see traffic between two other computers. If you want to see traffic to an external site, you need to capture the packets on the local computer.
How does a MAC address look like?
The MAC address is a 12 digit hexadecimal number that is most often displayed with a colon or hypen separating every two digits (an octet), making it easier to read. Example: A MAC address of 2c549188c9e3 is typically displayed as 2C:54:91:88:C9:E3 or 2c-54-91-88-c9-e3.
