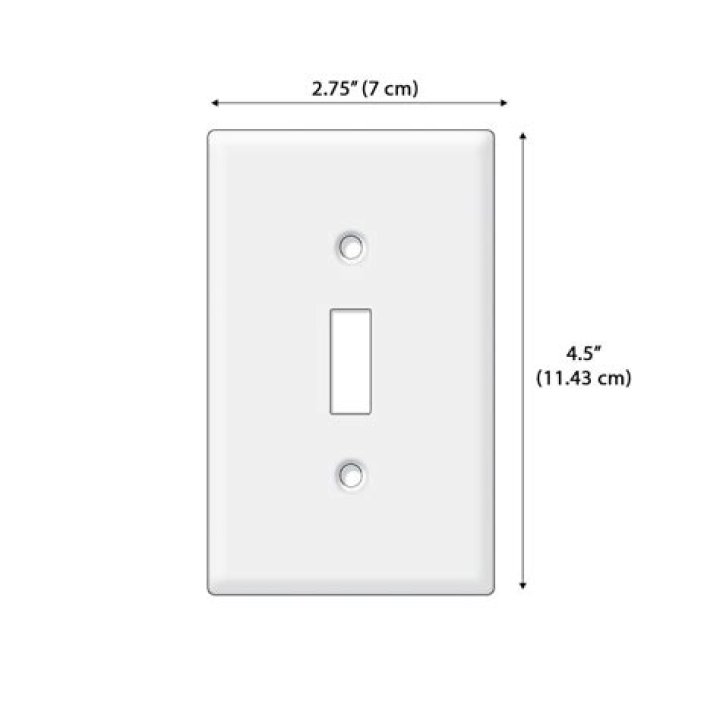

The standard size single switch or outlet cover plate is nominally 2.75 inches wide by 4.5 inches tall.

Do switch plates come in different sizes?

There are three common wall plate sizes: standard, midsize/midway and jumbo. When selecting a size, the plate should completely cover the electrical box opening. If the opening is oversized, you may need a jumbo plate to conceal it.

What is the code for light switches?

This states that all light switches must be placed between 15 and 48 inches from the floor to ensure that wheelchair users can reach them. With this in mind, builders tend to work to a standard height by placing the switch plate’s bottom 48 inches above the floor.

How wide is a light switch box?

Single light fixture switches and outlet receptacles typically fit into standard rectangular boxes, also known as “single-gang” or “one-gang” boxes. They are generally 2 x 3 inches in size, with depths ranging from 1 1/2 inches to 3 1/2 inches.

How thick is a light switch plate?

Standard light switch and outlet cover plates have a 5/32″. If your standard plate doesn’t sit flush with your wall, find several solutions to fix gaps between your wall and cover plate below.

How do I choose a light switch plate?

  1. Device Descriptions. …
  2. Plate Orientation Pay attention to the orientation of decorative combination plates that have different device openings. …
  3. Color and Finish. …
  4. Decorating On A Budget. …
  5. Oversized Switchplates May Be Required.

Do they make smaller light switch covers?

Many Size Options – Short outlet covers are available for duplex and Decora receptacles in one- or two-gang styles. Short light switch covers for toggle and rocker switches also come in both single and double sizes.

How wide is a 3 switch electrical box?

This item Carlon B349ADJ Outlet Box, New Work, 3 Gang, 5-13/16-Inch Length by 3-5/8-Inch Width by 3-Inch Depth, BlueCarlon BH353A Switch/Outlet Box, New Work, 3 Gang 5.8 Inch by 3.8 Inch by 3.5 Inch, BlueSold ByMaxWarehouseSirr0undItem Dimensions4.75 x 3.38 x 7.25 inches6.3 x 6 x 3.5 inches

What is the standard size of a light switch plate?

The standard size single switch or outlet cover plate is nominally 2.75 inches wide by 4.5 inches tall. The standard size two-gang switch or outlet cover plate measures 4.56 inches wide by 4.5 inches tall.

How wide is a double switch box?

Standard Switch Plates Two gangs are 4-9/16″ wide. Three gangs are 6-3/8″ wide.

Article first time published on

What is the standard height for light switches?

For a majority of rooms, builders tend to place the bottoms of light switches 48 inches above the floor. This is a comfortable height for most home dwellers when sitting or standing, plus it makes it easier to install switches during construction.

What is the standard height of a socket?

450mm up from the floor level. TV points, telephone points, doorbells and light switches should be a max height of 1200mm from the floor. Electrical sockets, switches and other electrical control devices should be a minimum of 350mm from corners of a room.

Does a light switch need to be in the room?

You won’t need to turn it off until you leave the room. The framing of the wall near the door may make it impossible to wire a light switch in the normal location.

What size are wall plates?

Generally, wall plates are in lengths of not less than 3 m. As the mortar does not bond the wall plate to the wall, steel straps are used to ensure that the roof structure remains secure. These are typically 1.2 m long with a cranked end and are fixed to the wall plate at 2 m centres.

What is midway size wall plate?

Midway – Slightly larger on all sides to help cover wall imperfections. Often considered “standard’ in many parts of the country. Jumbo – Notably larger on all sides to help cover more significant wall imperfections. Accommodates a single toggle switch.

How thick is a wall plate?

‘In England & Wales it is normal for wall plates to have a basic thickness of 38mm, whilst in Scotland thicknesses of 25mm or 47mm are typical. These thicknesses are acceptable for this Part of BS 8103. ‘

Can you paint switch plate covers?

Almost any wall plate can be painted, even your thermostat. Paint them ~ but do it right! Detailed below step by step are the necessary functions needed to paint your outlet and switch plates and have quality end result. Improper techniques can lead to your paint finish to bubble, peel or chip and look awful!

What color should my light switches be?

In addition to going well with white plates, white switches and outlets coordinate exceptionally well with black, gray, metal, and virtually any color plates. This allows you to coordinate your outlets with your décor, instead of worrying about having them match your switches and outlets.

Should switch plates and outlet covers match?

Ideally they should match the wall, or at least not stick out like the proverbial sore thumb. You can usually paint the switch plates to match the wall. Lightly sanding the plate first will help the paint adhere.

Is it OK to paint over electrical outlets?

Painting electrical outlets is possible, but it’s generally not recommended. If paint gets into the receptacle, it can cause a short-circuit and become a dangerous fire hazard. If you insist on painting the electrical outlets, stick to painting the outlet covers only. Alternatively, buy new outlets.

Should I paint my light switch covers?

Architectural Digest suggests painting outlet covers the same color and finish as the trim in a room for a subtle, textural effect. Keep in mind that if you choose not to paint the covers, the outlet itself and the cover should be the same color.

What color outlets should I use?

White switches continue to be the most popular finish, and they’re the easiest to match plates to. You’ll find the greatest range of electrical switches, outlets, dimmers, motion devices, sound systems, & home security controls in white.

What size is a jumbo outlet cover?

Choose from midway or oversized wallplates that are 5″ (tall plates) 5.06″ (midway covers), 5.5″ (oversized) 6.38″ (jumbo oversized), or 7.5″ (ultra oversized) tall in a variety of configurations. Also find switch plates here that oversized length-wise too: wide or extra wide light switch covers.

What is a rocker switch?

Rocker Switches house a button for operation that can be pressed on either end like a seesaw to connect or disconnect an electrical circuit. They are often used as ON/OFF switches on the main power supplies for electronic devices.

How deep is a shallow electrical box?

1-1/4″ depth x 2-3/8″ x 3-5/8″.

What is the maximum height for switches?

All switches and circuit breakers must be installed so the center of the grip of the operating handle of the switch or circuit breaker, when in its highest position, isn’t more than 6 feet 7 inches above the floor or working platform.

What is the height of switches and sockets?

The details of electrical fitting heights: In new dwellings only, switches and socket-outlets for lighting and other equipment should be between 450mm and 1200mm from finished floor level. Consumer units should be mounted so that the switches are between 1350mm and 1450mm above floor level.

What height are light switches Ireland?

Wall-mounted switches and control devices shall be mounted at a height as follows: i) switches for permanently-connected appliances: Between 400mm and 1200mm above floor level; ii) switches for lighting equipment: – in dwellings, between 400mm and 1200mm above floor level, – in public and similar buildings, between …

Why are bathroom light switches on the outside?

If a conventional rocker switch is installed, it must be outside the bathroom to avoid risk electrocution. Switches installed inside a bathroom tend to be a pull cord. This prevents contact of wet hands to live electricity, or even dry hands touching a wet switch. Because water and electricity don’t mix!

Where should a light switch be placed in a bedroom?

Locating the Switches By convention, most switch boxes are installed with the bottom of the box located 44 to 46 inches above the floor, this places the top of the box between 47 1/2 and 49 1/2 inches above the floor. By using these conventions, the top of the box is below the maximum 54 inches set down by the ADA.

Can a light switch be outside of a bedroom?

The NEC says that “at least one wall switch-controlled lighting outlet shall be installed in every habitable room and bathroom.” A switched receptacle is permitted as an alternative. I think it should be okay to put the switch outside the room as long as it is still near the door.
