As the washer fills, water enters the tube from the bottom and increases pressure in the airspace within the tube. When the pressure reaches the critical point, the switch shuts off water flow to the tub.

How does a pressure control switch work?

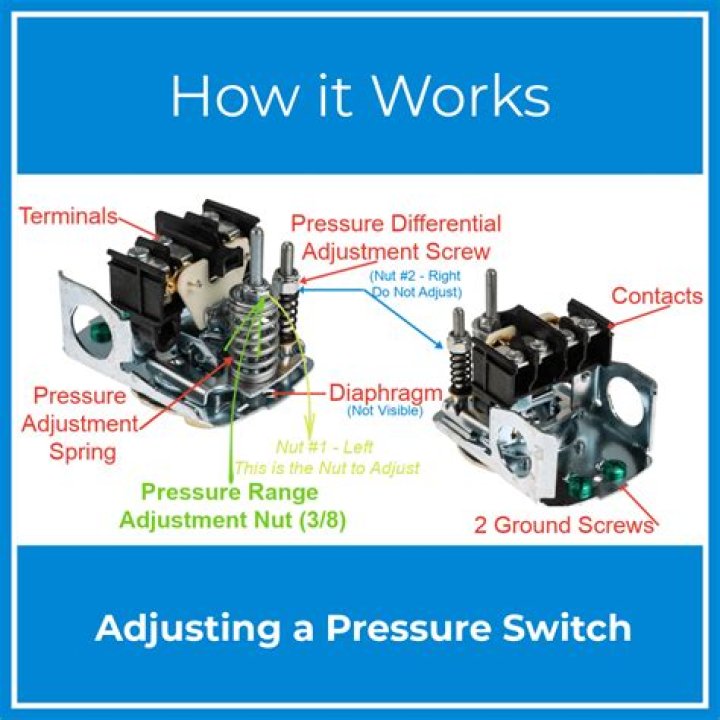

Pressure switches rely on water pressure to do all the work. The change in pressure that activates the switch is provided via the water from the well. The pressure moves up through the diaphragm which presses against a piston and spring, which in turn opens or closes the contacts.

How does washing machine sensor water level?

The level sensor uses a pressure switch to detect the water level in the tub. This switch controls how high the tub fills with water. The big end of the hose connects to the bottom of the tub, while the small end connects to the switch.

How do you reset the pressure switch on a washing machine?

To reset this, switch off the machine and fill with approximately two litres of water through the soap drawer. Then turn the machine on and onto the drain function, the machine should drain and reset.

What happens if pressure switch goes bad?

It’s what senses when water pressure has dropped to the point where the pressure tank requires more water. The switch then powers up the well pump. If the switch is bad, it won’t start the well pump and you won’t have water, so testing the switch is your first step.

Are pressure switches normally open?

There are two types of pressure switches: normally open (NO) and normally closed (NC). The open/closed nomenclature refers to the electrical contacts in the switch.

How do you test a pressure switch?

Test the Switch for Resistance Disconnect the wires connected to the pressure switch by pulling the wire connectors off of the switch terminals. Set a multimeter to test for resistance (ohms). Touch each tester probe to one of the switch terminals. The tester should read 0 or close to 0 (indicating no resistance).

Why will my washer not drain?

There are a few possibilities why your washing machine won’t drain. … Your washer may have a clogged drain hose or the pump may be broken. A broken lid switch or belt could also be the culprit. It may even be something as simple as the hose being jammed.

What causes water pressure switch failure?

Why a Pressure Switch Can Fail Over time, the springs may loosen and the wire ports may become exposed and corroded. Something as simple as a bug stuck between electrical contacts can prevent them from properly connecting. Rusted contacts can also detach completely, rendering the switch useless.

Why is my washer not filling up with water?

If your washer doesn’t fill with water, first check that the house water supply to the washer is on. If it is, and the washer won’t fill at all, the inlet valves might have failed. If the washer fills partially, the problem is likely with the temperature selector switch or water-level pressure switch.

Article first time published on

What is the principle of washing machine How do sensors work in washing machine?

In a washing machine, the Hall Effect sensor is mounted onto a printed circuit board in the electronics panel or onto the frame of the appliance, and a magnet is mounted on the rotating dial. When the dial is turned, the magnet rotates and changes the magnetic field detected by the Hall Effect sensor.

How do you bypass a water level sensor?

  1. Let us say you have 2 lbs of clothes.
  2. Add the 2 lbs of clothes in the washtub.
  3. Before commencing the wash cycle, pour 4 lbs of water over the clothes and let water to soak into the fabric.
  4. Start the wash cycle. …
  5. You have successfully bypassed water level sensor.

How do you test a bad pressure switch?

  1. A pump that cycles continuously for no apparent reason.
  2. A pump that works, but has very weak water pressure.
  3. A pump that doesn’t turn on and does not provide any water.

How long does a water pressure switch last?

The pressure switch can last for several years, but sometimes it can fail much sooner than you expect. To avoid being left without a functioning well, some homeowners simply have the switch replaced every year. Your well pump contractor can make this replacement when they come out for their yearly maintenance visit.

Why does my pressure switch Keep clicking on and off?

Switch Clicks On and Off Repeatedly One of the most frequent culprits is a blown bladder in the water tank. You’ll need to replace this component, and also inspect the switch contacts to see if they’ve suffered any damage from the cycling.

What is low pressure switch?

The low pressure switch monitors the refrigeration system for a loss of refrigerant charge, and may also be helpful in stopping the evaporator (indoor) coil from freezing up due to a dirty filter or low airflow over the coil. … low pressure charge. If either one of these switches trip, the HVAC unit will shut down.

How does a 40 60 pressure switch work?

The pressure switch tells the pump that delivers water to your home when to turn on and off. … For example, at 40/60 the pump will turn on when system pressure reaches 40 psi (pounds per square inch) and turn off when system pressure reaches 60 psi. The common settings are either 30/50 or 40/60.

Can a switch be normally open and normally closed?

A normally open switch is a type of electrical switch. When a normally open switch is not compressed it remains “off”. … In Normally Closed switches, the contacts are closed which connects the switch meaning that when they are not compressed they are switched “on”.

What is a pressure sensor switch?

A pressure switch is an active electromechanical device that controls the pressure in a system to ensure safety and the proper operation of a machine. Pressure switches work by opening or closing a circuit that powers a device, like a pump, when a certain pressure is reached.

What are two types of pressure switches?

  • Mechanical (electromechanical)
  • Electronic (solid state)

Why does my pressure switch keep burning up?

When there is too much water and not enough air in the tank, the pressure switch will signal the pump to turn on for short bursts of activity for only a few minutes at a time. This is called “short cycling” and can burn out your pump quickly.

Will a bad pressure switch trip the breaker?

Pressure Switch If the contacts aren’t working right or at all, it can cause a pressure relay problem that can make your system overdraw amperage that can trip your breaker.

How do you manually drain a washing machine?

  1. Step 1: Turn off the power and lay down towels.
  2. Step 2: Locate the drain hose at the back of the washing machine.
  3. Step 3: Drain the water.
  4. Step 1: Turn off the power and lay down towels.
  5. Step 2: Locate the drain hose.
  6. Step 3: Drain the water.
  7. Step 4: Scrub the filter.

Where is the water level switch on a washing machine?

The water level switch is a pressure activated switch that is used to determine the correct water level in the tub. This part is normally located behind the control panel and will have a hose or air dome tube that connects it to the tub.

Can you run washing machine with low water pressure?

Because older machines fill in this gradual manner, low water pressure does not affect the washer. … However, without high enough water pressure, modern machines might not allow enough time to fill. Instead of switching off during the fill part of the cycle, the motor keeps running and the clock keeps ticking.

Can we use washing machine with low water pressure?

Before choosing a front loading washing machine, ensure that you have stable water supply and water pressure at your home. … If there is low water pressure, the machine could take a lot of time to fill the tub. It could even abort the wash cycle.

What is normal water pressure?

Water pressure is measured in psi, or pounds per square inch, and represents the force at which water enters your home from the water main. Normal psi for a home pipe system is between 30 and 80 psi. While you don’t want the psi to be too low, it violates code to be above 80.

Is there a reset button on a washing machine?

Most newer washing machines come with a reset feature that allows you to restart the washer after it experiences an error code or fault. … Some machines have a button you push to reset its motor. On a machine without a reset button, unplugging the washer and then plugging it back in often serves as the means to reset it.

How do you reset the washing machine sensor?

To reset your washing machine, unplug it from the power outlet. Then, plug the washer cord back into the wall. Finally, open and close the washing machine door six times to send the reset signal to the system components.

What are the sensors needed in the control of an automatic washing machine?

Specific sensors can measure temperature, pressure, vibration, proximity and force. While a pressure sensor can monitor water level, a force sensor measures the payload weight at the beginning of the wash cycle. A proximity sensor verifies that the door is closed and latched before start-up.
