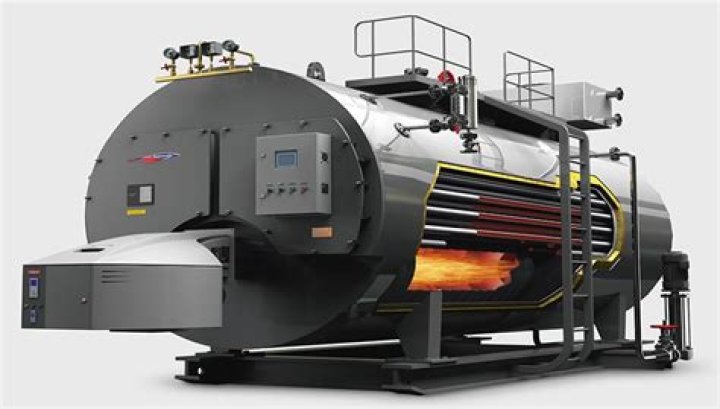

Boilers often have to withstand high pressure, in which case they would also be considered a pressure vessel.
Is a boiler a vessel?
Boiler – A closed vessel in which water is heated, steam is generated, steam is superheated, or any combination of them, under pressure or vacuum for use externally to itself by the direct application of heat.
Which vessels are considered to be pressure vessels?
The types of pressure vessels according to their function are storage tanks, boilers, heat exchangers, and process vessels.
What is classed as a pressure vessel?
Pressure Vessels are containers which are designed to hold liquids, vapors, or gases at high pressures, usually above 15 psig. Examples of common pressure vessels used in the petroleum refining and chemical processing industries include, but are not limited to, storage tanks, boilers, and heat exchangers.Is a water heater considered a pressure vessel?
Residential water heaters are not typically part of our members’ jurisdictional responsibilities. As a fired pressure vessel, however, the residential water heater represents a marriage of select components that make up both a pressure vessel and a boiler.
What is the purpose of a boiler in a vessel?
Boiler is a pressure vessel used on ships in which the water is heated to evaporate and generate the steam and the unit is so arranged that the generated steam accumulated in it.
Are heat exchangers pressure vessels?
An environmental heat exchanger, as defined by the ASME Code, is a single-chamber pressure vessel that exchanges energy with the surrounding atmosphere. The heat exchanger consists of one or two headers and a number of tubes separating the working fluid from the atmosphere.
Is gas cylinder a pressure vessel?
A gas cylinder is a pressure vessel for storage and containment of gases at above atmospheric pressure. High-pressure gas cylinders are also called bottles.Are pumps considered pressure vessels?
c) Pressure containers which are integral parts of components of rotating or reciprocating mechanical devices, such as pumps, compressors, turbines, generators, engines, and hydraulic or pneumatic cylinders where the primary design considerations and/ or stresses are derived from the functional requirements of the …
Is piping considered a pressure vessel?Sometimes, a pipe can be a vessel and vice versa. Here is another example: You can all decide. I have a 50 scfm instrument air receiver. Most people would agree that it is a pressure vessel (100 psi).
Article first time published onIs a chiller a pressure vessel?
Refrigerating plant pressure receivers that must be registered are vessels that contain refrigerant under pressure. This also applies to water-cooled chillers and chillers utilising other forms of refrigerants.
Is a compressor a pressure vessel?
Most compressed air users will have at least two pressure vessels within their compressed air system; the external air receiver and the internal air receiver – like an oil separator – which can be found within, for example, a screw compressor.
Where is the expansion vessel on a combi boiler?
Expansion vessels, also known as expansion tanks, keep the pressure in a combi boiler stable while water heats and cools. They are typically located inside the boiler casing. The typical pressure a boiler system should be set to is 1 bar.
Whats considered a boiler?
Boilers, which are full of copper tubes, are complex heating appliances that turn water into steam. They heat water rapidly for two different uses: hot water and home heating and are typically powered by electricity, natural gas, propane or heating oil.
Is a water heater considered a boiler?
A water heater is a large tank that, you guessed it, heats water. … A boiler, on the other hand, can heat water that is used to bring heat to the home and heat the water. A different type of boiler can heat the water to the point it turns into steam.
What constitutes a boiler?
A boiler is a closed vessel in which fluid (generally water) is heated. The fluid does not necessarily boil. The heated or vaporized fluid exits the boiler for use in various processes or heating applications, including water heating, central heating, boiler-based power generation, cooking, and sanitation.
Why are pressure vessels cylindrical?
Cylindrical Pressure Vessel Cylinders are widely used for storage due to their being less expensive to produce than spheres. However, cylinders are not as strong as spheres due to the weak point at each end. This weakness is reduced by hemispherical or rounded ends being fitted.
What does a water pressure vessel do?
Pressure vessels are most often used in domestic waterworks applications. Their main function is to balance and maintain a constant pressure in the water distribution system. They serve as water tanks and protect your pump from frequent switching, which could lead to rapid wear.
What is an unfired pressure vessel?
Unfired pressure vessels such as air and water storage tanks are vessels that have not been exposed to burner fire or combustion. … Unfired pressure vessels most often consist of several chambers and tube bundles. Another type of unfired pressure vessel is a steam generator which produces steam with a piping system.
What will happen if the boiler will be out of water?
Most boilers lose a certain amount of water during normal operation. … The safety system includes a low-water cutoff that shuts down the boiler if there is too little water. If the safety system fails and the boiler continues to run without enough water, it could have a dry fire accident.
What are the two types of boiler?
When we think about boilers, there are a two types that typically come to mind; firetube, or scotch marine, and watertube boilers. These types of boilers can be classified as hot water, steam, high pressure, and low pressure.
What is a boiler and state its importance on board?
A boiler is, in general, any closed liquid-containing vessel to which heat is applied. It is also called steam generator as it transforms water into steam. … A boiler drum is required for steam generation and separation to take place. For this purpose, the drum of an auxiliary boiler is usually used.
What is considered a pressure vessel by ASME?
ASME Definition A pressure vessel is defined as “a vessel in which the pressure is obtained from an indirect source or by the application of heat from an indirect source or a direct source.
How do you select material for a pressure vessel?
- Yield strength at design temperature.
- Ultimate tensile strength at room temperature.
- Creep strength at design temperature.
What are pressure vessels made of?
Many pressure vessels are made of steel. To manufacture a cylindrical or spherical pressure vessel, rolled and possibly forged parts would have to be welded together. Some mechanical properties of steel, achieved by rolling or forging, could be adversely affected by welding, unless special precautions are taken.
Why are liquids stored in cylinders?
Tanks that hold liquids or gases under pressure are almost always cylindrical or spherical because these shapes react to the stresses caused by internal pressures much more favorably.
Why LPG cylinder is cylindrical?
Gas bottles are cylindrical or spherical because circular hoops can withstand internal pressure by pure tension in the tank material instead of bending. … If the shape were not circular, then there would be bending stresses in the tank wall and it would not be able to withstand as much pressure without breaking.
What is a non code pressure vessel?
Non-code pressure vessels are designed with a 3:1 safety factor using a broad range of carbon steel and provide an economic alternative to ASME pressure vessels, often with a shorter lead time.
What is the difference between HVAC and chiller?
In cold weather, the air conditioning component of an HVAC system becomes redundant as air cooling is not required. Chiller systems can, however, be modified to provide heating and thus remain fully operational regardless of prevailing weather conditions.
Is chiller part of HVAC system?
Chillers operate as part of a complex HVAC system. Water-cooled chillers have greater complexity due to the connection to a cooling tower system.
Is chiller same as freezer?
The difference between a freezer and a blast chiller is that a freezer holds food at below freezing temperature while a blast chiller cools food quickly by blowing cold air over the food product and gradually dropping the temperature in the chamber.
